TIOMOS FLAP HINGE Set 90° (14-21mm) - Nickel F053139671
QUICK OVERVIEW
GRASS Tiomos FLAP Hinge
- 90° Open Angle
- For flap thickness of up to 21mm
- Narrow Gaps between door and cabinet
- Large overlay of up to 19mm

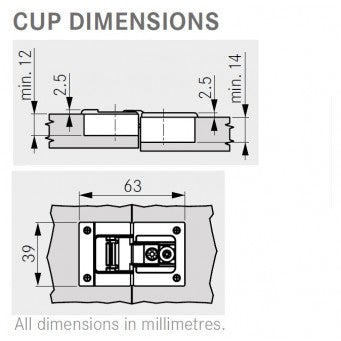

- 12mm cup depth
- 3-dimensional adjustment
- Very suitable for combining with the Kinvaro D -M flat stays
- Nickel Finish
Specifications
| Item #: | TIOMOS FLAP HINGE (F053139671) & Hinge Arm Cover Cap (F053139675) - Nickel Finish |
| Door Style: | - |
| Mechanism: | Regular |

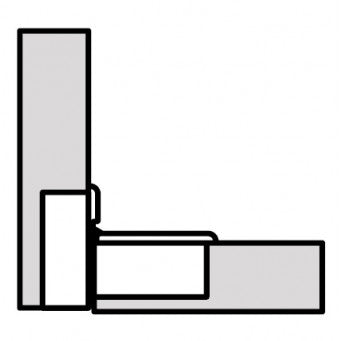

| Application Angle: | 90° (Blind Corner) |
| Material: | Steel |
| Brand: | GRASS |
For more information on the hinge, do visit Grass product catalogues below
