Specifications

Box Quantity = 50pcs

Sensys 90° hinge with integrated Silent System

  • Plates must be ordered separately
  • Quality classification under EN 15570, Level 3
  • Opening angle 95°
  • For door thickness 15 - 28 mm
  • Door mounting option overlay
  • Drilling pattern TH 52 x 5,5 mm
  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel nickel plated



Types of hinges

90° / Full Overlay / Screw On (TH pattern) = HTT-9088021

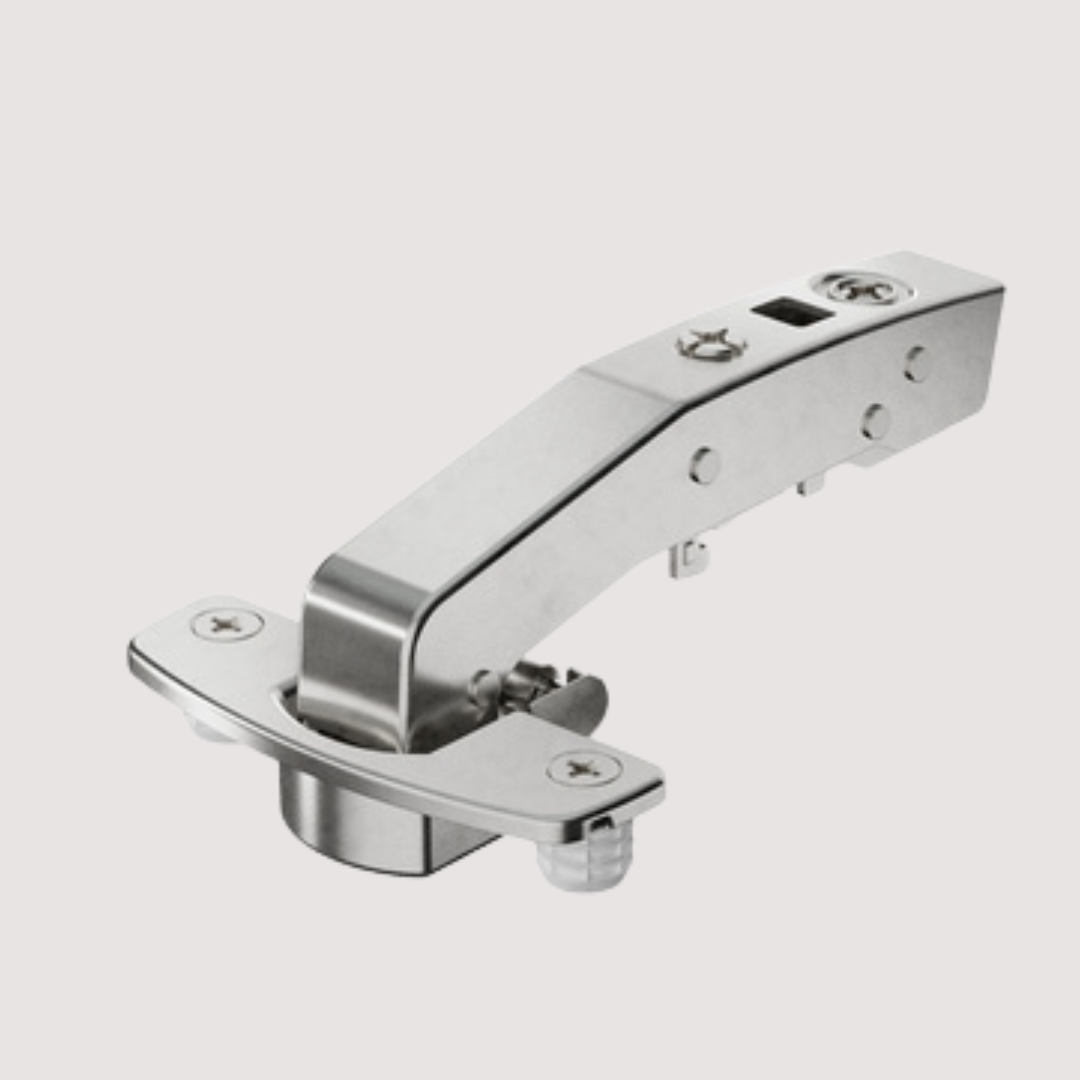

90° / Full Overlay / Pressing In (TH pattern) = HTT-9088039

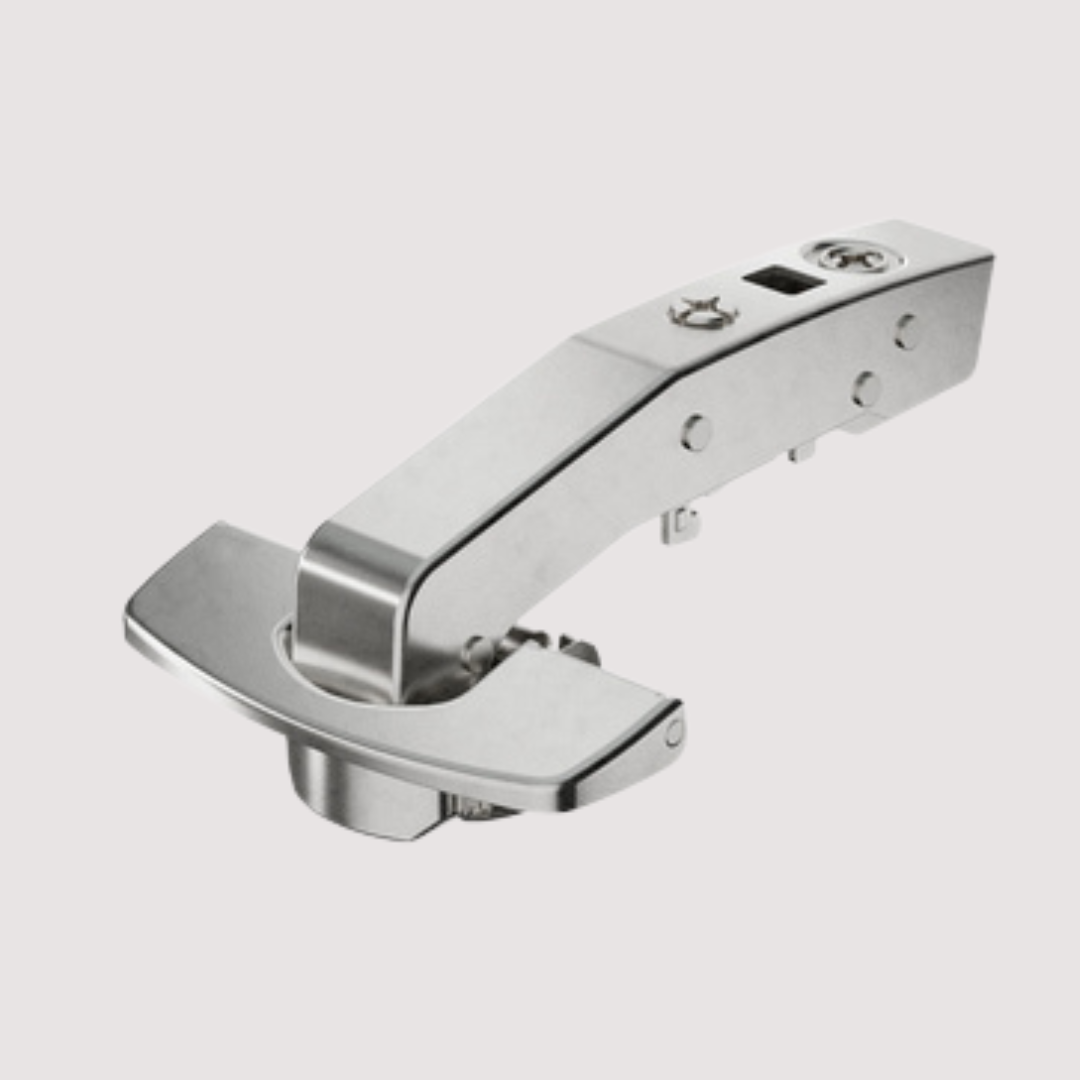

90° / Full Overlay / Fix Fast (TB pattern) = HTT-9088081
