Specifications

Box Quantity = 200pcs for HTT-9341256 (TB Pattern)

Box Quantity = 50pcs for HTT-9091738 (TH Pattern)

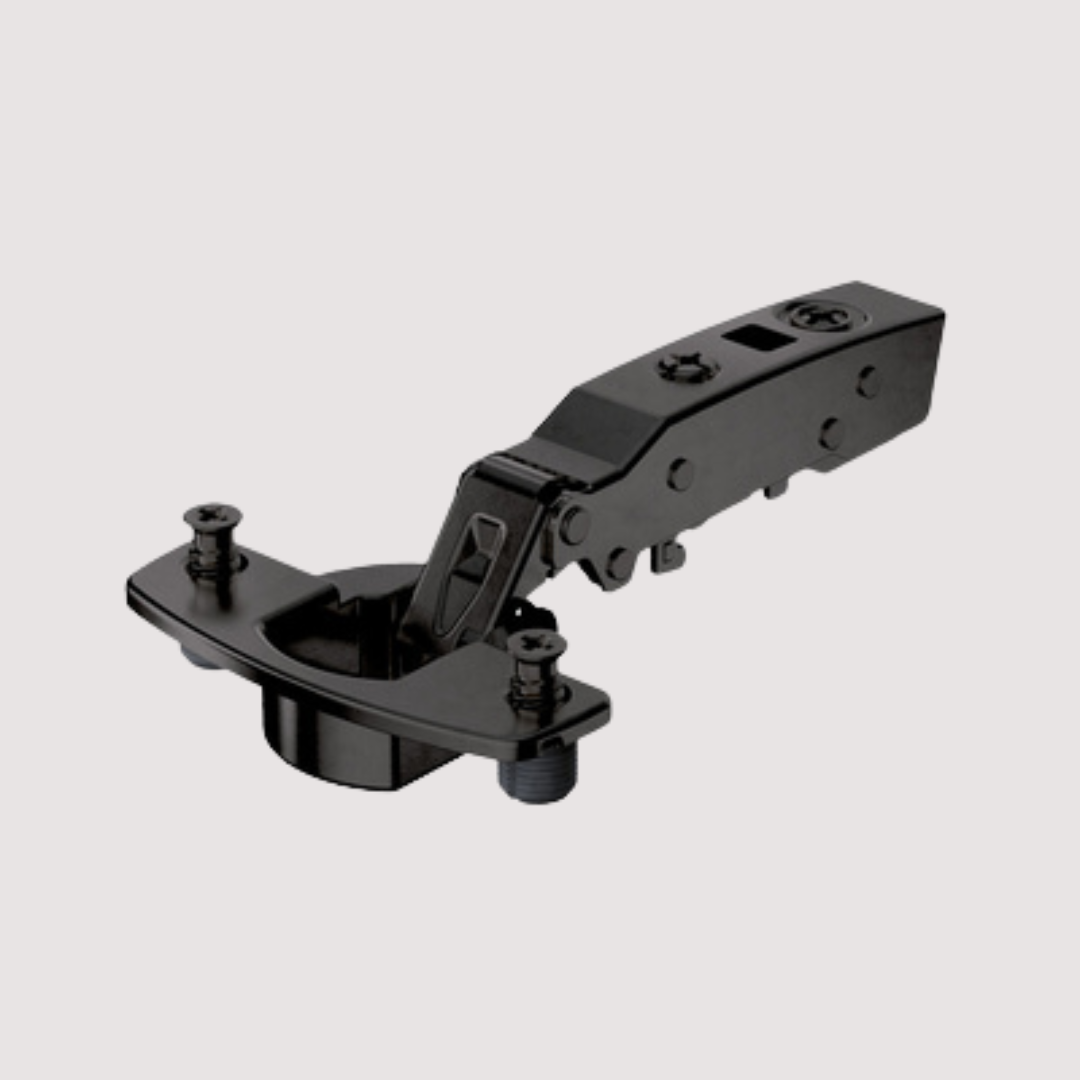

Sensys 110° hinge with integrated Silent System (Obsidian Black)

  • Plates must be ordered separately
  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110 °
  • For door thickness 15-24 mm
  • Door mounting option overlay (B 12.5 mm)
  • TH - drilling pattern 52 x 5.5 mm / TB - drilling pattern 45 x 9.5 mm
  • Cup depth 12.8 mm
  • Installation for screwing on (TH 52) / Installation for pressing in (TB 53)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel in obsidian black



Types of hinges

110° / Overlay / Screw on with screws (TH pattern) = HTT-9091738
110° / Overlay / Pressing In (TB pattern) = HTT-9341256
