HETTICH
Login to view price.

Specifications

Box Quantity = 50pcs for HTT-9072524



Sensys 110° hinge with integrated Silent System

  • Plates must be ordered separately
  • Sensys aluminium frame hinge
  • With integrated Silent System, with self closing feature (Sensys 8638i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 95°
  • For 19 mm wide aluminium profiles
  • Door mounting option overlay (B 12.5 mm)

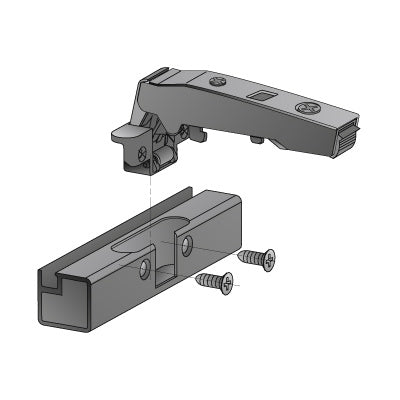

  • Installation for screwing on
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Including 2 fixing screws
  • steel / die-cast zinc nickel plated



For more information on the hinge, do visit Hettich product catalogues below:

  • Aluminium Frame Hinges - PDF

 For Installation/Assembly details, kindly visit below link:

  • Aluminium Frame Hinges - Video
  • Aluminium Frame Hinges - PDF
