Login to view price.

Specifications

Box Quantity = 50pcs

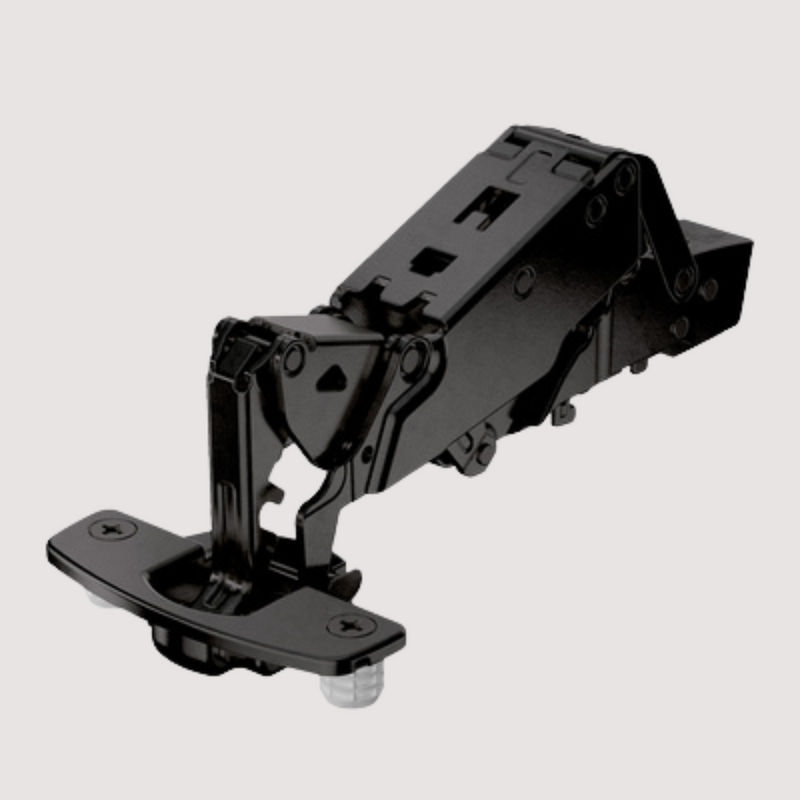

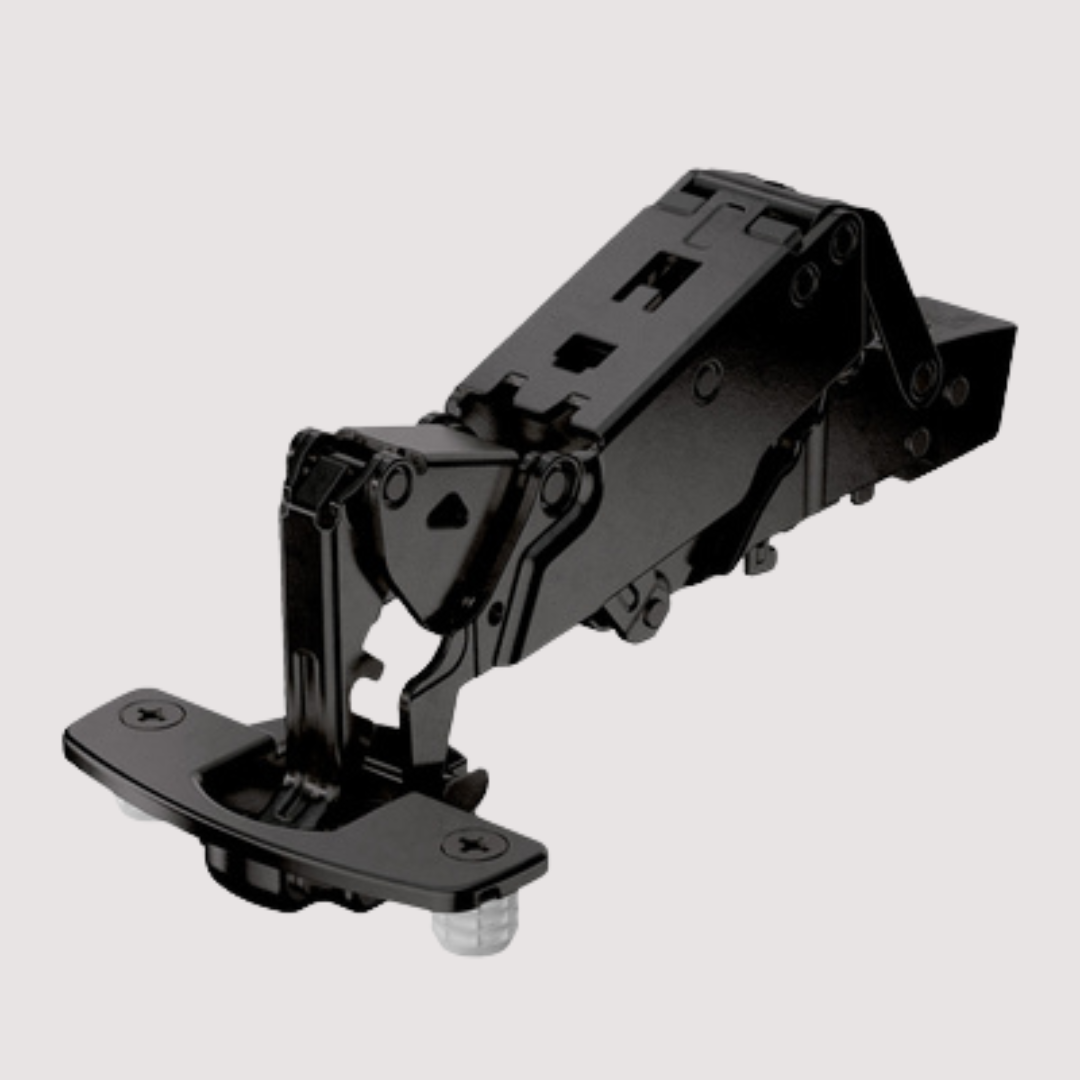

Sensys 165° hinge with integrated Silent System

  • Plates must be ordered separately
  • Sensys wide angle hinge, with zero protrusion
  • With or without integrated Silent System, with self closing feature (Sensys 8657i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 165°
  • For door thickness 15-32 mm
  • Door mounting option overlay (B 12.5 mm)
  • TH - drilling pattern 52 x 5.5 mm / TB - drilling pattern 45 x 9.5 mm
  • Cup depth 11.6 mm
  • Installation for screwing on (TH 52) or pressing in (TB 53)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel / die-cast zinc in obsidian black



Types of hinges

165° / Overlay / Screw on (TH- Pattern) = HTT-9091767
165° / Overlay / Pressing In (TB- Pattern) = HTT-9342117

For more information on the hinge, do visit Hettich product catalogues below:

  • 110° hinges - PDF
  • 45° hinges  - PDF
  • 90° hinges  - PDF
  • 135° hinges  - PDF
  • 165° hinges  - PDF

For Installation/Assembly details, kindly visit below link:

  • 110° hinges - PDF
  • 45° hinges  -  PDF
  • 90° hinges  -  PDF
  • 135° hinges  - PDF
  • 165° hinges  - PDF
